Tenant Context

Overview

Navida is designed as a highly scalable platform, which means it can efficiently handle growth in both its infrastructure and functional capabilities. This scalability is crucial for accommodating increasing workloads and expanding functionalities without compromising performance.

Multi-Tenant Architecture

One of the key features of Navida is its multi-tenant architecture. This design allows multiple clients (AOKs) to use the same platform while keeping their data and configurations separate. The multi-tenant approach simplifies the onboarding process for new clients, enabling them to integrate into the platform quickly and efficiently. This rapid onboarding is essential for businesses that need to adapt to changing market conditions or customer demands.

Infrastructure Model

Currently, Navida operates on a shared compute infrastructure with a dedicated data model. This means that while the backend microservices, that make up the platform—run in a shared environment, each tenant's transactional data is stored separately. This setup allows for efficient resource utilization, as multiple tenants can share the same computing resources without interfering with each other's operations.

Execution Pane and Traffic Management

The execution pane of Navida is designed to handle incoming traffic from all tenants through a shared nodes of microservices . This shared node processes requests regardless of which tenant is making them, facilitating efficient traffic management and resource allocation. This design choice helps in optimizing performance and reducing latency, as resources can be dynamically allocated based on demand.

Data Storage Model

Regarding data storage, Navida currently employs a "schema per tenant" model. This means that each tenant has its own database schema, which allows for customization and flexibility in how data is structured and accessed. However, this model is also configurable, meaning that if a tenant requires it, Navida can transition to a "database per tenant" model on demand. This flexibility ensures that the platform can meet varying needs and preferences of different tenants, providing them with the level of isolation and customization they require.

Runtime execution :

When onboarding to Navida Mobile application , AOK selection is needed to identify the tenant context and the network module of the native mobile application , then set an HTTP header called XtenantID to the selected AOK

examples :

• XTenantId : aokplus
• XTenantId : aokbw

This header is also required for support tool UIs or any API-based integration with the Navida platform to ensure the correct tenant context for transactional read and write operations.

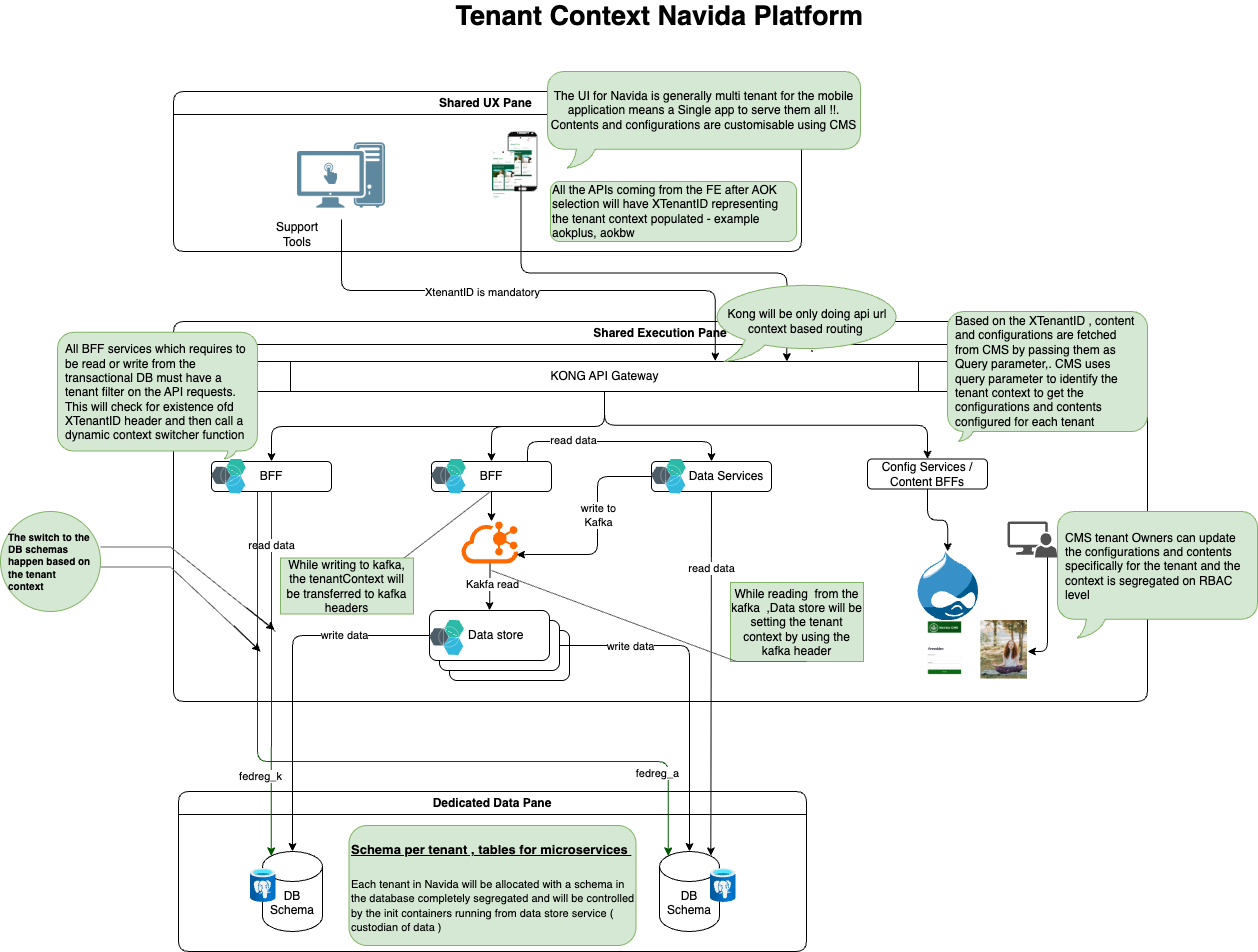

All incoming traffic to Navida backend systems is managed through a single entry point: the Kong API gateway. The gateway handles traffic routing to the appropriate Kubernetes services based on the API URL context (for example, /consent/api/v1 is routed to the consent service).

When backend services receive API requests, they invoke a tenant filter method that checks for the presence of the XTenantID header and sets the tenant context accordingly. If the header is missing, the system defaults to the default tenant mentioned in the helm configurations. This is used to see the APIs which do not need a tenant context will still work with a default configuration

refer :

TenantFilter.java

TenantContext.java

ContextAwareCompletableFuture.java

The tenant filter enables the microservice to dynamically switch the database connection to the appropriate database or schema configured for each tenant. This behavior is governed by the configurations defined under resources/allTenants in the microservice source code.

configs examples

Once the tenant context is established, all read operations are performed on the corresponding tenant's database. For write operations, since Kafka is used, the tenant context must also be propagated to the datastore layer. This is accomplished by converting the HTTP header received from the frontend into a Kafka header. The datastore process then reads the tenant information from the Kafka header and switches to the appropriate context accordingly.

Configurations and Contents from CMS

All content, system records, and configurations managed in the CMS are already associated with the tenant context through RBAC. Each record is linked to the user ID that created it. CMS APIs use simple query parameters to identify the tenant and serve content associated with users of the specified tenant.

refer CMS API example
